1W Isolated Unregulated Railway DC DC Converter Fixed Input Voltage Dual Single Output

Product Categories
KHC Power Technology Co.,Ltd
Contact Now

1W Isolated Unregulated Railway DC DC Converter Fixed Input Voltage Dual Single Output

Brand Name : MORNSUN

Model Number : E_LT-1WR3 & F_LT-1WR3 Series

Certification : CE

Place of Origin : China

MOQ : 100PCS

Payment Terms : T/T

Packaging Details : Carton packed

AC input : 85~305VAC

High efficiency : 80%

No-load power consumption : 0.1W

Weight : 5.2g (Typ.)

Dimensions : 26.40 x 14.73 x 11.00 mm

Case Material : Plastic case meets UL94V-0 flammability

Contact Now

1W isolated DC-DC converter Fixed input voltage, regulated dual output

Description

E_LT-1WR3&F_LT-1WR3 series are specially designed for applications where an isolated(two isolated)voltage is required in a distributed power supply system.They are suitable for:pure digital circuits,low frequency analog circuits,relay-driven circuits and data switching circuits.

FEATURES

  • Continuous short-circuit protection
  • No-load input current as low as 8mA
  • Operating ambient temperature range: -40℃ to +105℃
  • High efficiency up to 83%
  • Compact SMD package
  • I/O isolation test voltage 3k VDC
  • Industry standard pin-out

Specifications

Selection Guide

Certification

Part No.

 Input Voltage (VDC) Output Full Load Efficiency (%) Min./Typ.

Capacitive Load(µF)

Max.
Nominal (Range) Voltage (VDC) Current(mA) Max./Min.

--

 E1215LT-1WR3

12

(10.8-13.2)

 ±15 ±33/±3 79/83 220
F1205LT-1WR3 5 200/20 78/82 2400
F1212LT-1WR3 12 84/9 79/83 560
F1215LT-1WR3 15 67/7 79/83 560
F2405LT-1WR3

24

(21.6-26.4)

 5 200/20 74/80 2400
F2415LT-1WR3 15 67/7 74/80 560
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit

Input Current

(full load / no-load)

 12VDC input -- 102/8 107/--

mA
24VDC input -- 53/8 57/--
Reflected Ripple Current* -- 15 --

Surge Voltage (1sec. max.)

 12VDC input -0.7 -- 18

VDC
24VDC input -0.7 -- 30
Input Filter Capacitance filter
Hot Plug Unavailable
Note: * Reflected ripple current testing method please see DC-DC Converter Application Notes for specific operation.
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit
Voltage Accuracy See output regulation curve(Fig. 1)
Linear Regulation Input voltage change: ±1% -- -- ±1.2 --

Load Regulation

10%-100% load

 5VDC output -- 5 15

%
12VDC/15VDC output -- 2 10
Ripple & Noise* 20MHz bandwidth --- 50 100 mVp-p
Temperature Coefficient Full load -- ±0.02 -- %/℃
Short-circuit Protection Continuous, self-recovery
Note: * The “parallel cable” method is used for ripple and noise test, please refer to DC-DC Converter Application Notes for specific information.

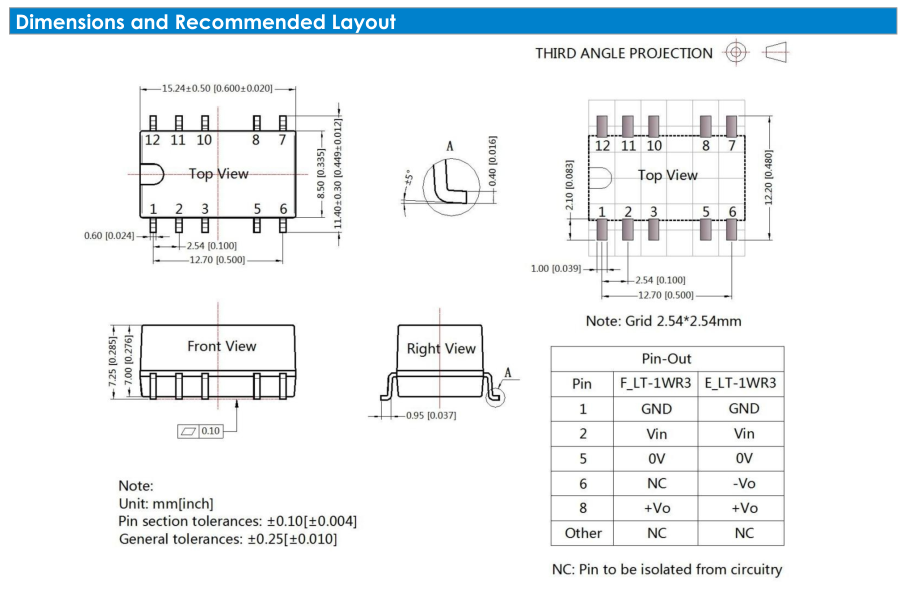

Mechanical Specifications
Case Material Black plastic; flame-retardant and heat-resistant (UL94-V0)
Dimensions 15.24 x 11.40 x 7.25 mm
Weight 1.3g(Typ.)
Cooling Method Free air convection

1W Isolated Unregulated Railway DC DC Converter Fixed Input Voltage Dual Single Output
